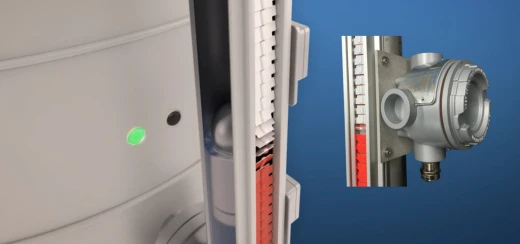

Switches for Magnetic Level Gauges
Magnetic switches make it possible to generate an additional signal, allowing you to use multiple switches to control a pump and/or generate a high/low alarm signal. Various switches are available for both general and explosive environments. We also offer switches with marine certification.

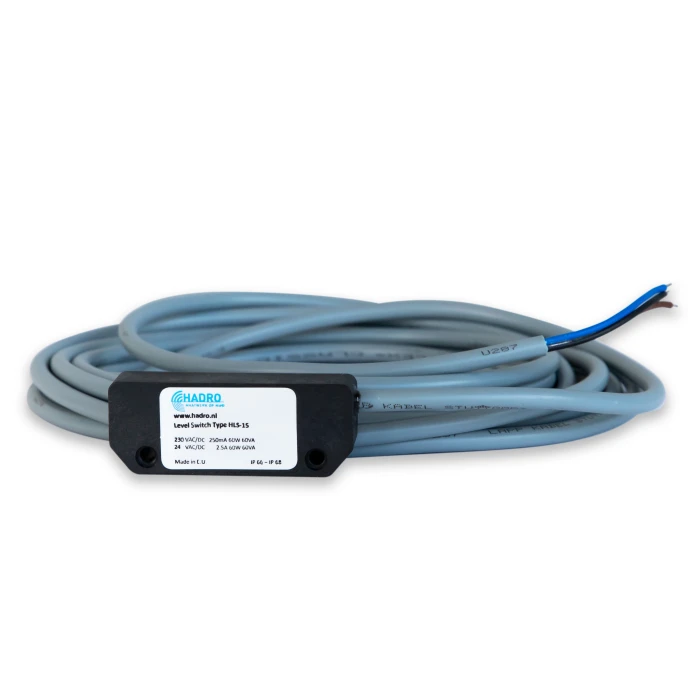

HLS-15
| Switch Type | HLS-15 |
| Position | SPDT |
| System | Reed Switch |
| Load Capacity | 2.5 A / 60 W / 60 VA |
| Tension | 10–230 V |
| Temperature range | -25 … +95°C |
| Service life | 1 × 10⁹ |
| Density | IP 66 / 67 and IP 68 |
| Connection | 5-meter cable |
| Dimensions | 65 x 25 x 15 mm |
| Materials | Fiberglass-reinforced plastic |
| Options | Temperature up to 130°C |

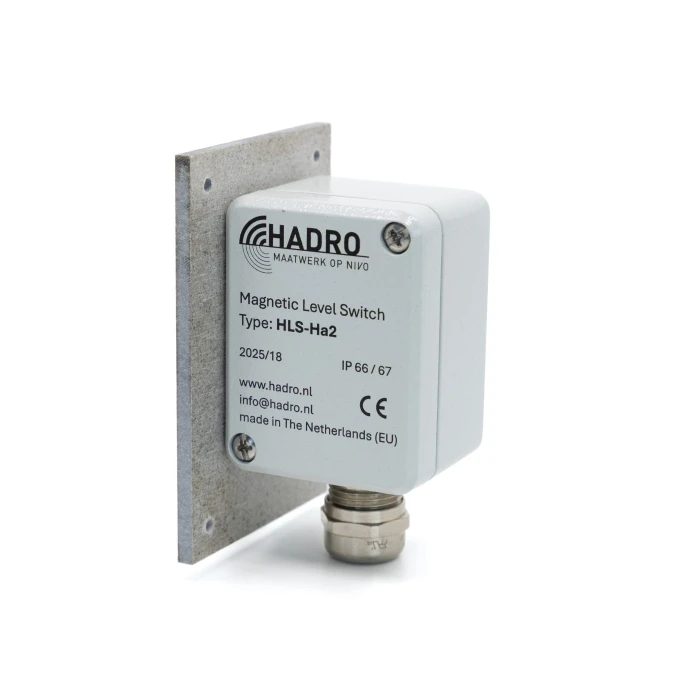

HLS-Ha2
| Switch Type | HLS-Ha2 |
| Position | SPDT |
| System | Reed switch |
| Load Capacity | 2.5A / 60W / 60VA |
| Tension | 10–230 V |
| Temperature range | -40… +180°C |
| Service life | 1 × 10⁸ |
| Density | IP 66 / IP 67 |
| Connection | M16 swivel |
| Dimensions | 95 x 65 x 54 mm |
| Materials | Aluminum housing |

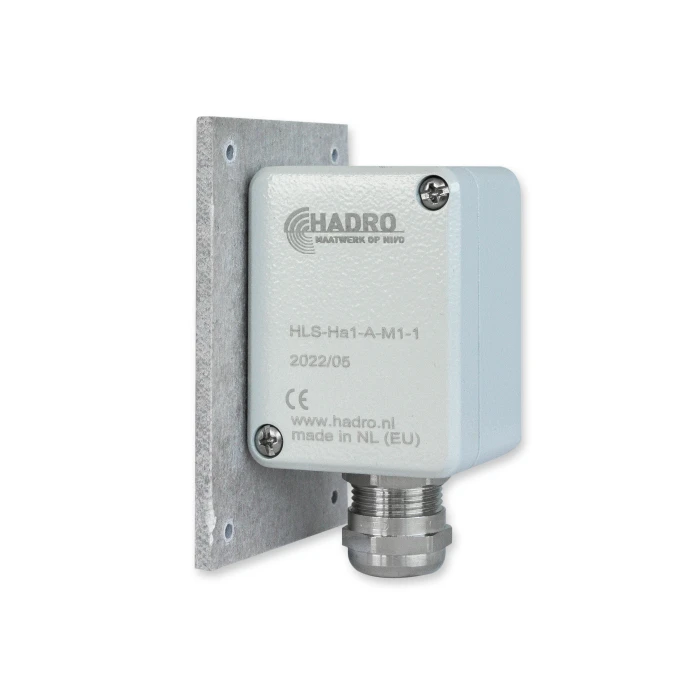

HLS-Ha1
| Switch Type | HLS-Ha1 |
| Position | SPDT |
| System | Micro switch |
| Load Capacity | 5A / 100W / 100VA |
| Tension | 10–230 V |
| Temperature range | -50 … +350°C |
| Service life | 1 × 10⁶ |
| Density | IP 67 |
| Connection | M16 swivel |
| Dimensions | 95 x 65 x 54 mm |
| Materials | AlSi housing |
| Options | M20 swivel connector , 316 stainless steel housing , 2x SPDT |
HLS-25i
| Switch Type | HLS-25i |
| Position | SPDT |
| System | Reed Switch |
| Load Capacity | 250 mA / 1.3 W / 1.3 A |
| Tension | 10–30 V |
| Temperature range | -40 … +100°C |
| Service life | 1 × 10⁹ |
| Density | IP 66 / 67 and IP 68 |
| Connection | 5-meter PVC cable |
| Dimensions | 80 x 25 x 20 mm |
| Materials | 316 stainless steel housing |
| Approval | II 1 GD Exia IIC T6 Ga II 1 GD Exia IIIC T85°C IP66/67 Da |

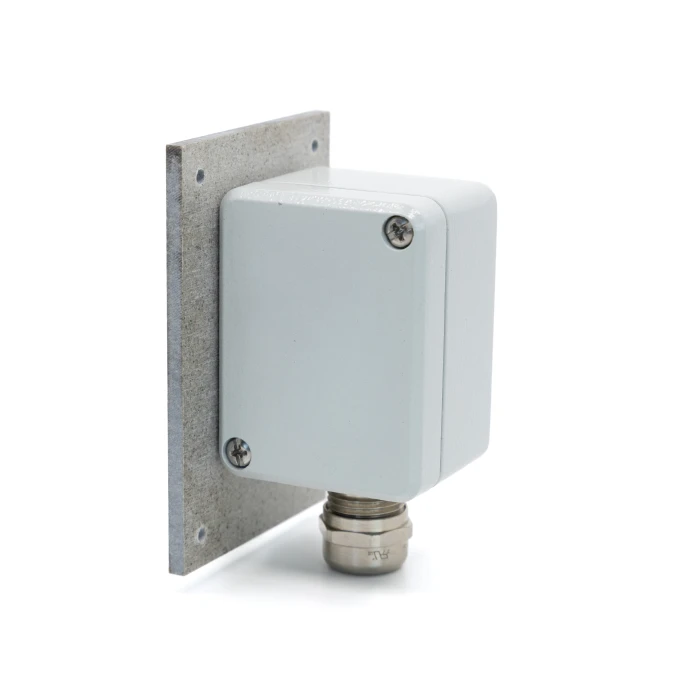

HLS-Ha1E
| Switch Type | HLS-Ha1E |
| Position | SPDT |
| System | Micro switch |
| Load Capacity | 0.5A / 1.3W |
| Tension | 10–30 V |
| Temperature range | -50 … +350°C |
| Service life | 1 × 10⁶ |
| Density | IP 67 |
| Connection | M20 swivel (blue) |
| Dimensions | 95 x 65 x 54 mm |
| Materials | AlSi housing |
| Approval | Ex i “simple apparatus” |
| Options | M16 connector 316L stainless steel housing Gold-plated contacts 2x SPDT |

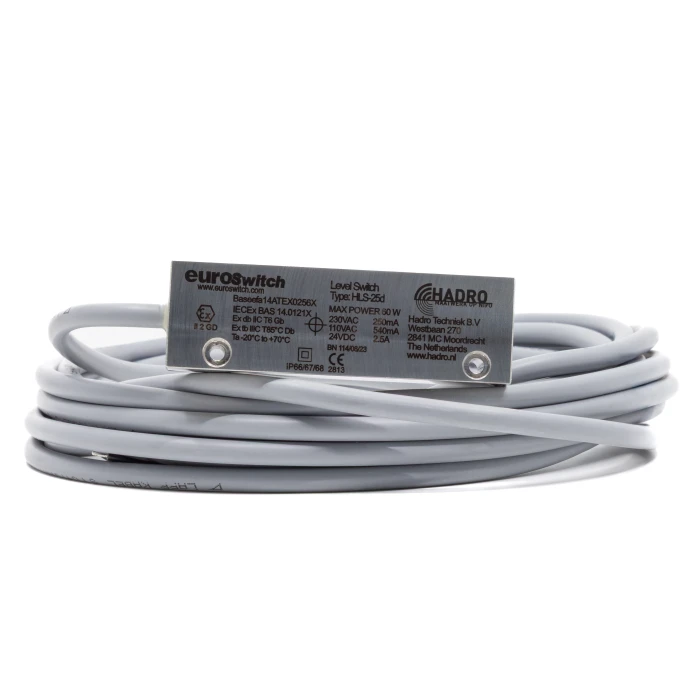

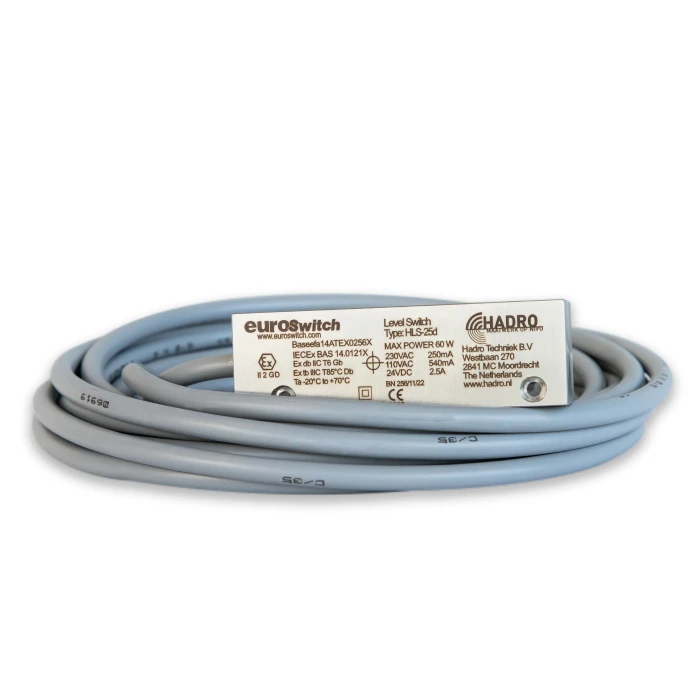

HLS-25d
| Switch Type | HLS-25d |
| Position | SPDT |
| System | Reed Switch |
| Load Capacity | 24 VDC / 2.5 A / 60 W 230 VAC / 250 mA / 60 W |
| Tension | 10–230 V |
| Temperature range | -40 … +100°C |
| Service life | 1 × 10⁹ |
| Density | IP 66 / 67 and IP 68 |
| Connection | 5-meter PVC cable |
| Dimensions | 80 x 25 x 20 mm |
| Materials | 316 stainless steel housing |
| Approval | II 2 GD Exd IIC T6 Gb II 2 GD Ex tb IIIC T85°C Db |

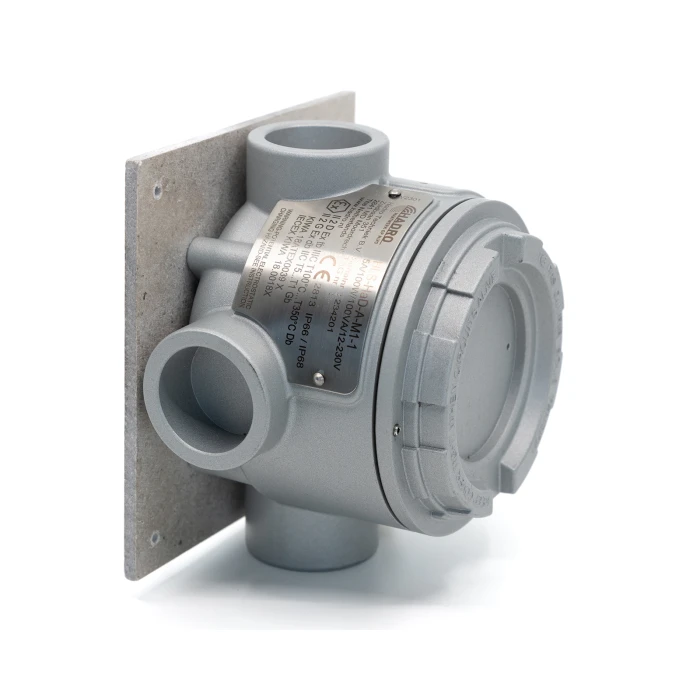

HLS-HaD
| Switch Type | HLS-HaD |
| Position | SPDT |
| System | Micro switch |
| Load Capacity | 5A / 100W / 100VA |
| Tension | 10–230 V |
| Temperature range | -50 … + 350°C |
| Service life | 1 × 10⁶ |
| Density | IP 66 and IP 68 |
| Connection | ¾” NPT or M20 x 1.5, max. 1.5 mm² |
| Dimensions | 130 x 130 x 90 mm |
| Materials | Aluminum housing |
| Approval | II 2 G Ex db IIC T5..T1 Gb II 2 D Ex tb IIIC T100°C..T350°C Db |
| Options | Stainless steel 316 housing , 2x SPDT gold contacts |
